Fluid Bed Processor or Fluid Bed Multi Processor

Granulation

Fluidized bed multiprocessor can integrate top spray for granulation and coating
Fluid bed processor bottom spray for coating
tangent spray for pelletizing.
We supply a single Fluid Bed processing – granulation / drying & pellet coating in one unit.

Industry Standard Machinery

For production and research

Worldwide Delivery

Your order, at your doorstep

Technical Specs

Capacity

Payload, Volume throughput,..

Utility Specs

Power consumption, Operating pressure,..

Configuration

Modular, Standalone, inline, or rotary.

Build Quality

Material grade, wear resistance.

Detailed Information on Fluid Bed Processor or Fluid Bed Multi Processor

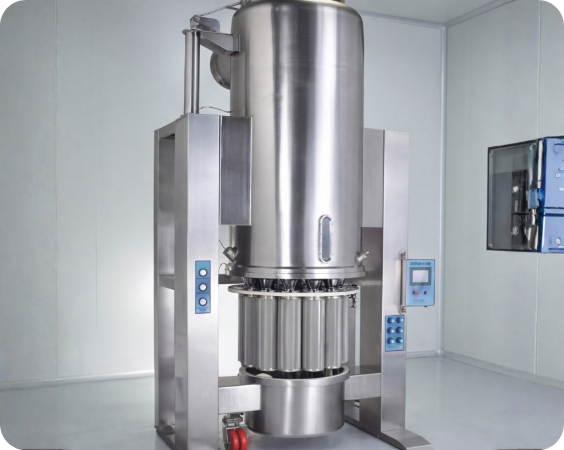

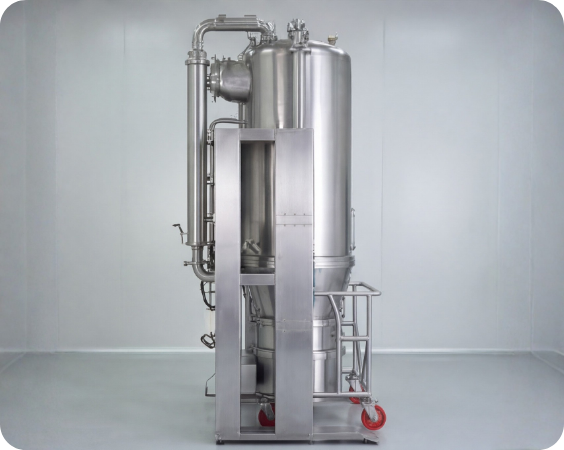

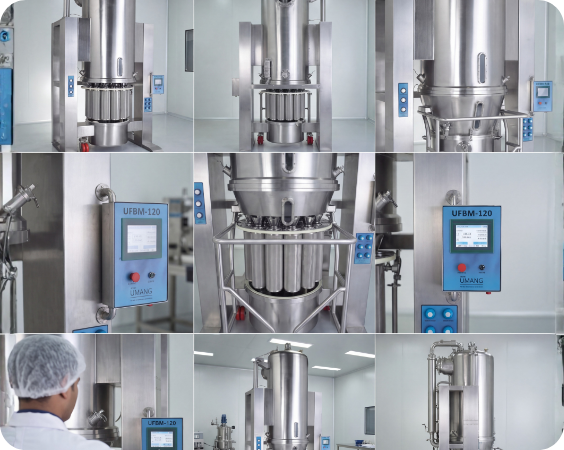

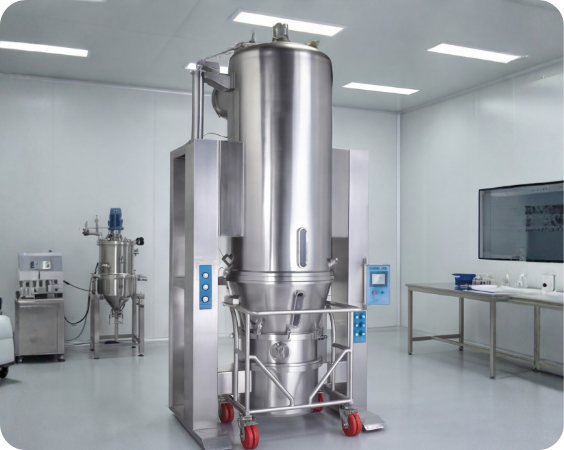

Umang's Fluid Bed Multiprocessor is an Ideal Stand alone multipurpose model for Research & different applications like Drying, Granulation, Powder Coating, Layering & Spheronizing with Different Options in single Unit Top Spray, Bottom Spray & unique Rotor Technology. Fluid Bed Processors are versatile and indispensable tools in industries requiring efficient and controlled processing of powders and granules. Their ability to perform drying, granulation, coating, and pelletization processes with precision and efficiency makes them essential for achieving high product quality, consistency, and productivity in pharmaceutical, chemical, food, and cosmetic manufacturing. FEATURES Versatile Functionality: Designed for spray granulation and pellet coating. Adjustable Spray Gun: External spray gun is easily observable and adjustable. Uniform Coating: Ensures even coating and high roundness with minimal particle damage. Enhanced Drying Rate: Superior drying rate compared to centrifugal coaters due to high permeability. Customizable Air Distribution: Changeable distribution plates for varying air permeability to suit different processes. Adjustable Solution Volume: Spray gun solution volume can be tailored to the loading capacity. Ease of Use: Simplified charging and discharging processes comply with FDA/cGMP standards. Quick Output: Faster pellet coating with less material loss compared to bottom spray coating. PERKS 1. Coating and Encapsulation: Applies thin, uniform coatings of active ingredients, flavors, or functional coatings onto particles or granules, enhancing stability and bioavailability. 2. Controlled Release Formulations: Enables the development of controlled-release formulations (e.g., sustained-release, extended-release) by coating particles with polymers or functional excipients. 3. Improved Product Quality and Efficiency: Achieves thorough mixing and homogenization of powders and granules, ensuring uniform distribution of ingredients. 4. Drying and Moisture Control: Utilizes hot air to rapidly dry wet materials, achieving uniform drying and moisture removal. 5. Granulation and Agglomeration: Creates granules with uniform particle size and density, improving flow properties and dissolution rates.

Model	UMLC	UFBM 1	UFBM 3	UFBM 5	UFBM 15	UFBM 30	UFBM 120	UABM 300	UABM 750
Capacity	750 gm/hr	1 kg/hr	1.5 kg/hr	2 Kg/hr	6 Kg/hr	12 Kg/hr	60 Kg/hr	120 Kg/hr	300 Kg/hr

Highlights of Fluid Bed Processor or Fluid Bed Multi Processor

- Single Machine with Multiple Processing Inserts.
- Standalone Compact & Modular Design complying cGMP Standards.
- Unique Distribution plate with Air Barrier for uniform coating.
- Rotor Stator Gap allows efficient process air volume to apply lifting force of granules.
- Stainless steel 316 L construction contact parts rest Stainless steel 304

Have Doubt? Contact Us...

FAQs on Fluid Bed Processor or Fluid Bed Multi Processor

A Fluid Bed Processor is a versatile processing system used for drying, granulation, coating, pelletization, and layering of powders and granules. It is widely used in pharmaceutical, nutraceutical, food, chemical, and cosmetic industries to perform multiple operations within a single machine.

A standard Fluid Bed Processor is primarily used for drying and granulation, whereas a Fluid Bed Multi Processor integrates multiple technologies such as top spray, bottom spray, and rotor processing. This allows granulation, coating, layering, pelletization, and drying to be performed in one unit.

The system can be configured with: -Top Spray for granulation and coating -Bottom Spray (Wurster Process) for precise pellet coating -Rotor Processing for pelletization, drug layering, and powder coating This flexibility enables manufacturers to handle a wide range of products and processes.

Key benefits include reduced processing time, lower equipment requirements, improved product uniformity, efficient drying, superior coating quality, minimal material loss, easy cleaning, and the ability to perform multiple operations within a single GMP-compliant system.

The machine is ideal for pharmaceutical granules, coated pellets, sustained-release formulations, drug-layered pellets, nutraceutical products, food ingredients, and specialty chemical products requiring controlled drying, granulation, or coating processes.

Downloadable Files for Fluid Bed Processor or Fluid Bed Multi Processor

FLUID BED PROCESSOR OR FLUID BED MULTI PROCESSOR FLYERS

GRANULATION SYSTEMS FLYERS

Other Products Related to Granulation systems

Granulation

Fluid Bed Processor or Fluid Bed Multi Processor

Granulation

Roller Compactor

Granulation

Rapid Mixer Granulator (RMG)
